Examples of thermal modes

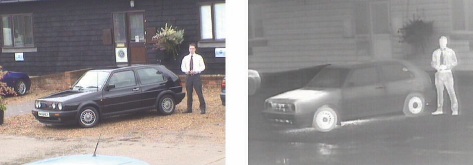

Optical image / Thermal image in white hot

The Thermal Camera utilize an un-cooled micro bolometer responding in the spectral range of 8 -12 urn which is beyond what is visible to the human eye. Camera support fixed 1 motorized FOV lenses with suitable housing rated for outdoor installations. It also have features like control operation Polarity, NUC, Digital Zoom & Freeze and have following standards of IP66, Shock & Vibration for MIL-STD- 810E & CE rating
The Thermal Camera have a suitable sun light shade to limit direct sunlight. The approximate Detection & Recognition range for a vehicle and a human target with each the camera:

For Vehicle with 2.3m critical dimension:

For Human Target

It provide a standard NTSC or PAL analog composite video output to connect directly to digital video recorders, encoders and monitoring equipment. It is controllable by a serial interface (RS-232 / 422) for camera set-up and control with a computer. The weight with all accessories is less than 2.5Kg. Camera support for heaters to operate in severe cold environment.

Technical Specifications:

Resolution/Image size(H x V)	384 X 288
Lens	384 X 288
Focal Plane Array	35mm (15 degree FOV)
Pixel Pitch	Uncooled Micro bolometer
Spectral Response	25 Microns
Video Output- Thermal	8 to 12 Micro Meter
Communication	NTSC/ PAL
Control Operation	RS 232/RS 422
Serial remote interface	RS-232/422
Input Voltage	12 or 24 VDC(+/-) or 24 VAC(user configurable)
Input Power requirement	2.5 W Regular, 10 W with heaters
Operating Temperature Range	-20 degree C to 55 degree C
Standards	IP66, CE, Shock & vibration MIL – STD - 810E
Weight	Less than 2.5 Kg
